Editing Tikz Axis

Hystrelius May 03, 2025 [Software] #latex #tikz

One of the problems which I struggled a lot with Tikz was trying to scale the axis of a plot, as it would end up choosing the most obscure scales like $10^2$.

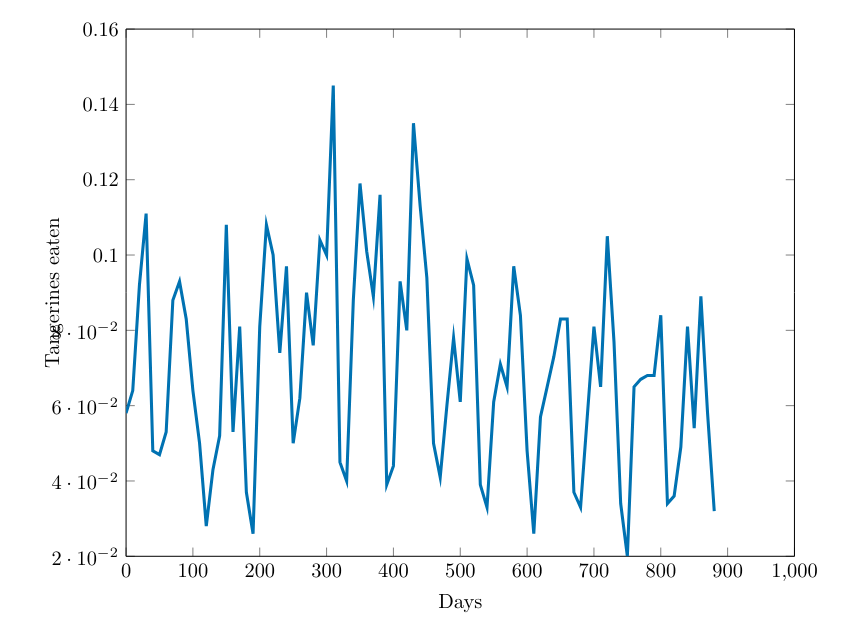

So, I compiled all my fixes that I found, which turns a graph like: Tikz graph with the y axis having a combination of 10^-2 and 0.1, with the x axis overscaled

(Seriously, Tikz what is going on here!? – there are label collisions, weird scales)

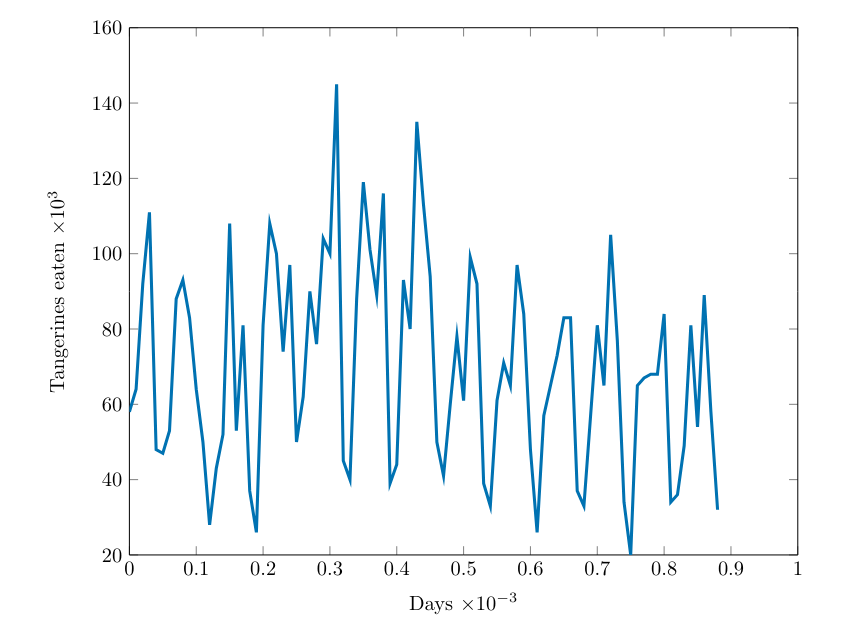

Into a graph like: Nice clean Tikz graph This involves editing the “frontmatter” of the tikz file to force it to change scales.

This is what my old front-matter looked like:

\begin{axis}[%
    width=4.521in,
    height=3.566in,
    at={(0.758in,0.481in)},
    scale only axis,
    xmin=0,
    xmax=1000,
    ymin=0.02,
    ymax=0.16,
    axis background/.style={fill=white},
    xminorgrids,
    yminorgrids
]

With the config telling Tikz the ranges of the $x$ and $y$ axis, but importantly nothing about the scale. (The “scale only axis” prevents the graph from warped).

To fix this we need to force Tikz to scale for us,

scaled x ticks=base 10:-3,
scaled y ticks=base 10:3,

These functions basically times every $x$ tick value by $10^{-3}$ and every $y$ tick value by $10^{3}$, which shifts into more respectable ranges. To stop a little $10^{3}$ from floating around next to the axis, we can overload tikz to remove that pesky little number:

xtick scale label code/.code={},
ytick scale label code/.code={},

This basically forces the little scale label to be blank.

So, this is what the final front-matter looks like:

\begin{axis}[%
width=4.521in,
height=3.566in,
at={(0.758in,0.481in)},
scale only axis,
xmin=0,
xmax=1000,
ymin=0.02,
ymax=0.16,
axis background/.style={fill=white},
xminorgrids,
yminorgrids,
xlabel={Days $\times10^3$},
ylabel={Tangerines eaten $\times10^3$},
scaled y ticks=base 10:3,
ytick scale label code/.code={},
scaled x ticks=base 10:-3,
xtick scale label code/.code={}
]

And doing logarithmic scales is very similar,

xmode=log,
ymode=log,

So, there you go!

P.S., making these graphs

I made these graphs through importing CSV data into MatLab and then using the matlab2tikz package to export the data into a Tikz file.
